Details See more
Found supreme quality
● Truss applies superior profile steel with unique structure, high intensity, thorough anti-rusting treatment, fine effect, long life.
● Outstanding international manufacture craft technology, tooling engineering guarantee accurate stairways.
● Strong CPU main board computer control executes real-time monitor to running conditions, It promptly and automatically stops upon any abnormal condition, It makes prompt and automatic record, displays trouble code.
New height, new scene
GOSHIN large height public traffic type escalator is significant achievement along innovative steps of GOSHIN Elevator. It is proud of large lifting height. It initiates upon new highlight of domestic outdoor public traffic type escalator field. It extends practical product range to a broader field.
Have a panoramic view of flowing scenes
GOSHIN large height public traffic type escalator accords with travel concept. It integrates with aesthetics, safety, environment protection into one. It is an effective heavy-duty escalator transport solution plan which is custom-made for public traffic. It can endure harsh environmental test.
Handrail entry satety protection
Protection against risk of foreign matters being jammed into handrail entry.
Soft and green fluorescent light sends out from the engaging teeth in-between two adjacent steps(treads)in up I down end. It reminds the passengers to pay attention to the step entry /exit horizonta section. It thus enhances the travel safely.
Skirt panel brush
Brush is installed between step and skirting so that the passengers shoes do not touch the skirt panel.
Cover-plate anti-reversal technology
It applies "movable cover-plate hook-up device". A strengthened hook-up device is installed respectively left and right of movable cover-plate. It ensures that frontline cover-plate is safe and firm under vanous conditions. It will not be reversed.
Step loss protection device
It sets one monitor device respectively in drive station and steering station. When it detects step or tread loss, escalator immediately stops. It thus effectively ensures the passengers' safety.
It is controlled by micro-computer. It gives lubricating signal within the set penod. It automatically connects with hydraulic pump for oiling and lubrication.
Comb Teeth safety Devices
Front ends of comb teeth plates are installed on springs. If any foreign substance is nipped between moving escalator steps and static comb teeth plates such plates will move in vertical or backward directions, and trigger the safety switches monitoring at both sides of the plates, and the escalators will be automatically stopped.
Side guide high accuracy step guide rail system
High rigidity big profile guide rail with nose used as transverse step positioning guarantee the minimum gap between the skirt and step, decrease the possibility of objects clamp in between.

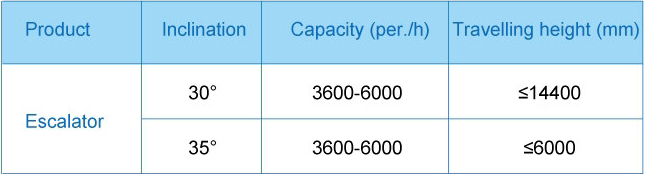

Specification See more
Layout-drawing See more

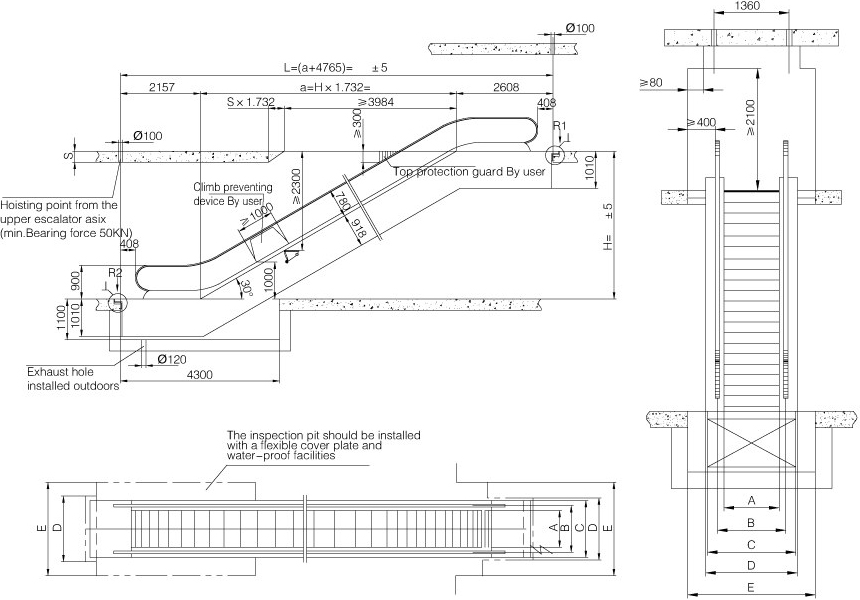

► 30° Escalator construction sketch

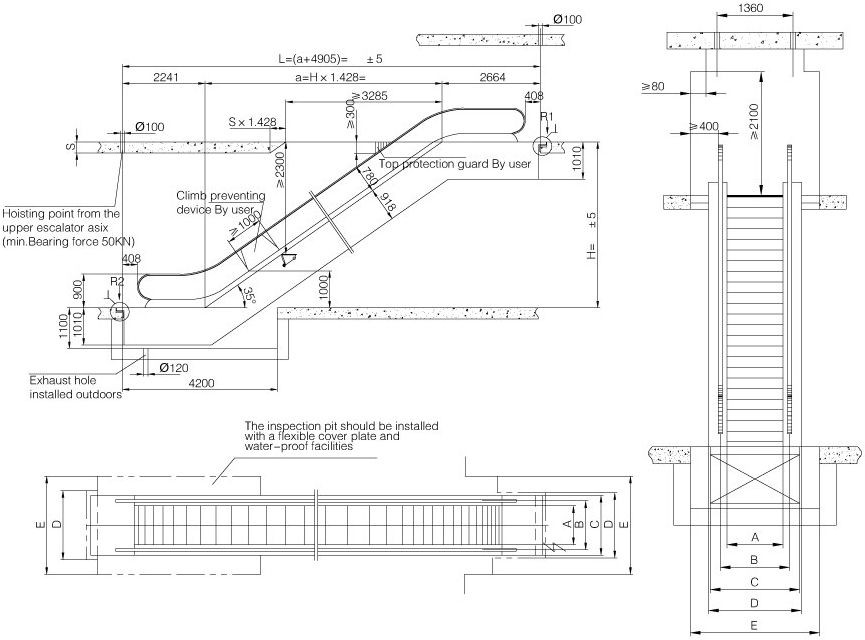

► 35° Escalator construction sketch
Function See more
► Standard function
When chooses the frequency converter, it can effectivel reduce the energy consumption, usually save 60% of the energy in the little passenger flow and efficiently cut down 80% of the peak-value current. The escalator operates at low speed under no-load conditions, while detects the accessing passenger, it will retum to normal speed for the operation.
Oil / water separator(Apply to outdoor type)
It separates the escalator oil and water. Rain exhausts through oil /water separator. We regularly clean oil mainly for the environmental protection purpose.
► Optional function
